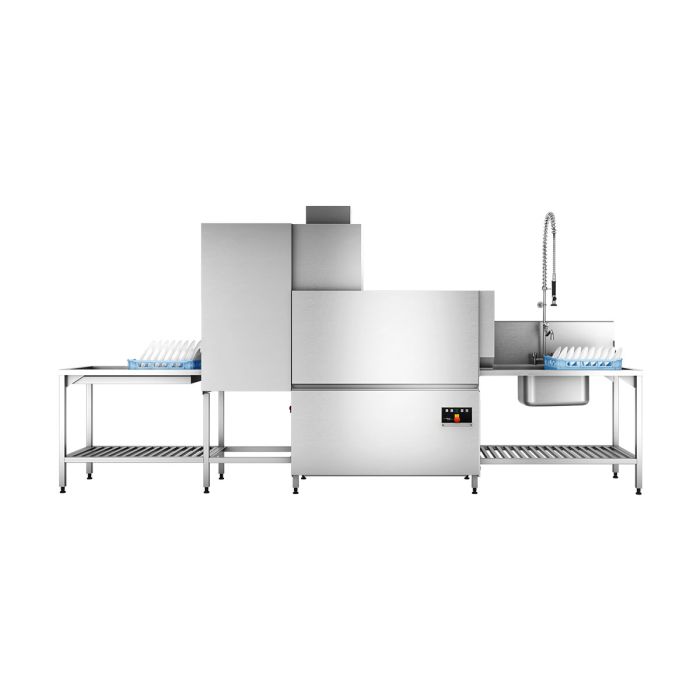

The Ecomax Plus C815EA rack Conveyor Dishwasher with Pre Wash has low running costs and simple to use controls. This model is ideally designed for higher volume operations where a hood machine would not be sufficient, this range of higher capacity machines ensures a gleaming finish without fail.
Maximum Output
The Ecomax Plus C815EA offers all the advantages of the C815A with the welcome addition of a pre-wash capability increasing throughput to 150 racks per hour.
Pre-Wash
Of compact design, with the dual rinse system utilising a 4+3 wash arm configuration, the C815EA guarantees gleaming results every time. The pre-wash zone offers increased performance and incorporates a removable scraper tray enabling fast emptying of food soil. Incorporating simple to use electronic controls enabling constant monitoring of the operation.
Economical
The C815EA is economical to run and fully compliant it also has the option of a exhaust heat exchanger to recover up to 11Kw of waste energy. A class 'A' air gap prevents dirty water being back siphoned. Being of robust German design and build quality this unit is easy to service and maintain. A welcome addition to any larger commercial kitchen.
Features:
Up to 150 racks (2700 plates) per hour (500 x 500mm basket - 18 plates)
Pre-wash zone features a removable scrapper tray - enables fast and efficient emptying of food soil
Double skinned with fully insulated door
440mm loading height
Compact design
Low running costs
Integral Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
Hot or cold soft water connection recommended
Full width counter balanced panoramic door – allows easy access for cleaning
CONTACT+ ‘4 + 3‘ wash arm configuration for maximum wash coverage – ensures thorough and consistent cleaning performance
Dual rinse system as standard – delivers excellent rinsing results and economy using just 180ltrs/hr.
Simple operation for filling, conveyor start and draining -easy to use and understand
Continuous digital display of wash & rinse temperatures – correct operation can be checked at a glance
Wash tank is protected by full width strainer, with separate soil basket
Stainless steel wash pump housing and impellor gives maximum reliability
Rinse booster pump
This unit does not have an in-built softener
Electronic soft touch controls - simple and easy to use with constant temperature display and access for parameter adjustments
Spec:
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash Tank Capacity - 105 litres
Water Consumption/cycle - 180 litres/hr
Electrical Loading - 400/50/3 Hot fill 22.3kw (50 Amps) or Cold fill 29.8kw (63 Amps) - To be specified at time of order
Water Pressure Req. - Cold or hot feed, 1.5-6 BAR (not to exceed 60°)
Useable Loading Height - 440 (mm)
Dimensions - 2150 (h) x 1850 (w) x 775 (d) mm
Warranty - 1 Year Parts and Labour
*Tabling not included, if you wish to add tabling please click here to view the options or request a site survey
