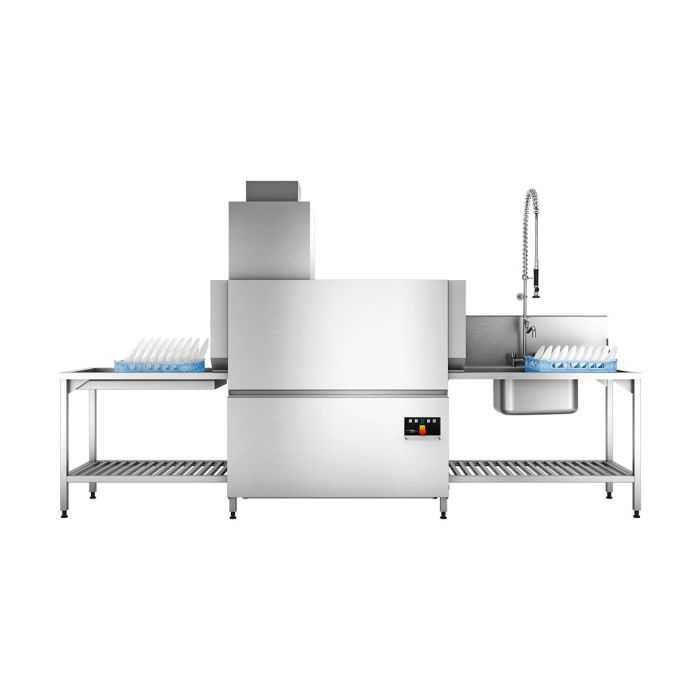

The Ecomax Plus C815A rack Conveyor Dishwasher has low running costs and simple to use controls. This model is ideally designed for higher volume operations where a hood machine would not be sufficient, this range of higher capacity machines ensures a gleaming finish without fail.
120 Racks Per Hour
Rack conveyor dishwashers are ideally suited to the larger kitchen where volume is required, the C815A can deliver 120 racks per hour producing sparkling results.
Simple to Use and Economical
Simple to operate for filling, conveyor start and draining and with a continuous display of wash and rinse temperatures the dishwasher's operations can be easily monitored. It offers consistent performance with guaranteed hygienic results thanks to a dual rinse system and a 3+4 wash arm configuration. The class 'A' air gap prevents back siphoning of dirty water into mains water. These units are economical to run and are fully compliant; there is even an optional exhaust heat exchanger which can recover up to 11Kw of waste energy.
Easy Maintenance
The C815A incorporates a full width panoramic door which allows easy access for cleaning and maintenance. Of robust German design these units are durable, easy to maintain and service.
(Tabling not included)
Features:
Up to 120 racks (2160 plates) per hour (500 x 500mm basket - 18 plates)
1 x Plate rack, 1 x Open Rack and 1 x Cutlery basket
Double skinned with fully insulated door
Compact design
Low running costs
Integral Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
Hot or cold soft water connection recommended
Full width counter balanced panoramic door – allows easy access for cleaning
CONTACT+ ‘4 + 3‘ wash arm configuration for maximum wash coverage – ensures thorough and consistent cleaning performance
Dual rinse system as standard – delivers excellent rinsing results and economy using just 160ltrs/hr.
Simple operation for filling, conveyor start and draining -easy to use and understand
Continuous digital display of wash & rinse temperatures – correct operation can be checked at a glance
Wash tank is protected by full width strainer, with separate soil basket
Stainless steel wash arms fitted with indented anti-block jects as well as slider mechanism for opening all wash pipes
Easy to indentify removable cleaning parts thanks to blue markers
Rinse booster pump
Electronic soft touch controls - simple and easy to use with constant temperature display and access for parameter adjustments
This unit does not have an in-built softener
Made in Germany
Spec:
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash Tank Capacity - 105 litres
Water Consumption/cycle - 160 litres/hr
Water Pressure Req. - Cold or hot feed, 1.5-6 BAR (not to exceed 60°)
Electrical Loading - 400/50/3 Hot fill 22.3kw (50 Amps) or Cold fill 29.8kw (63 Amps) - To be specified at time of order
Useable Loading Height - 440 (mm)
Dimensions - 2150 (h) x 1350 (w) x 775 (d) mm
Warranty - 1 Year Parts and Labour
*Tabling not included, if you wish to add tabling please click here to view the options or request a site survey
